What to Mark on the Drawing for an Entryway Cabinet with Charging Drawer

A cabinet elevation can look complete while one note remains vague: “charging drawer.” For an entryway cabinet with charging drawer, that label states an intention, not a buildable detail. It does not identify the devices, approved power interface, cable route, usable space, or future access.

Coordinate those decisions before production. The cabinetmaker should not invent an electrical solution; the cabinetry drawings should record the agreed openings, clearances, zones, and access conditions around the project’s approved electrical approach.

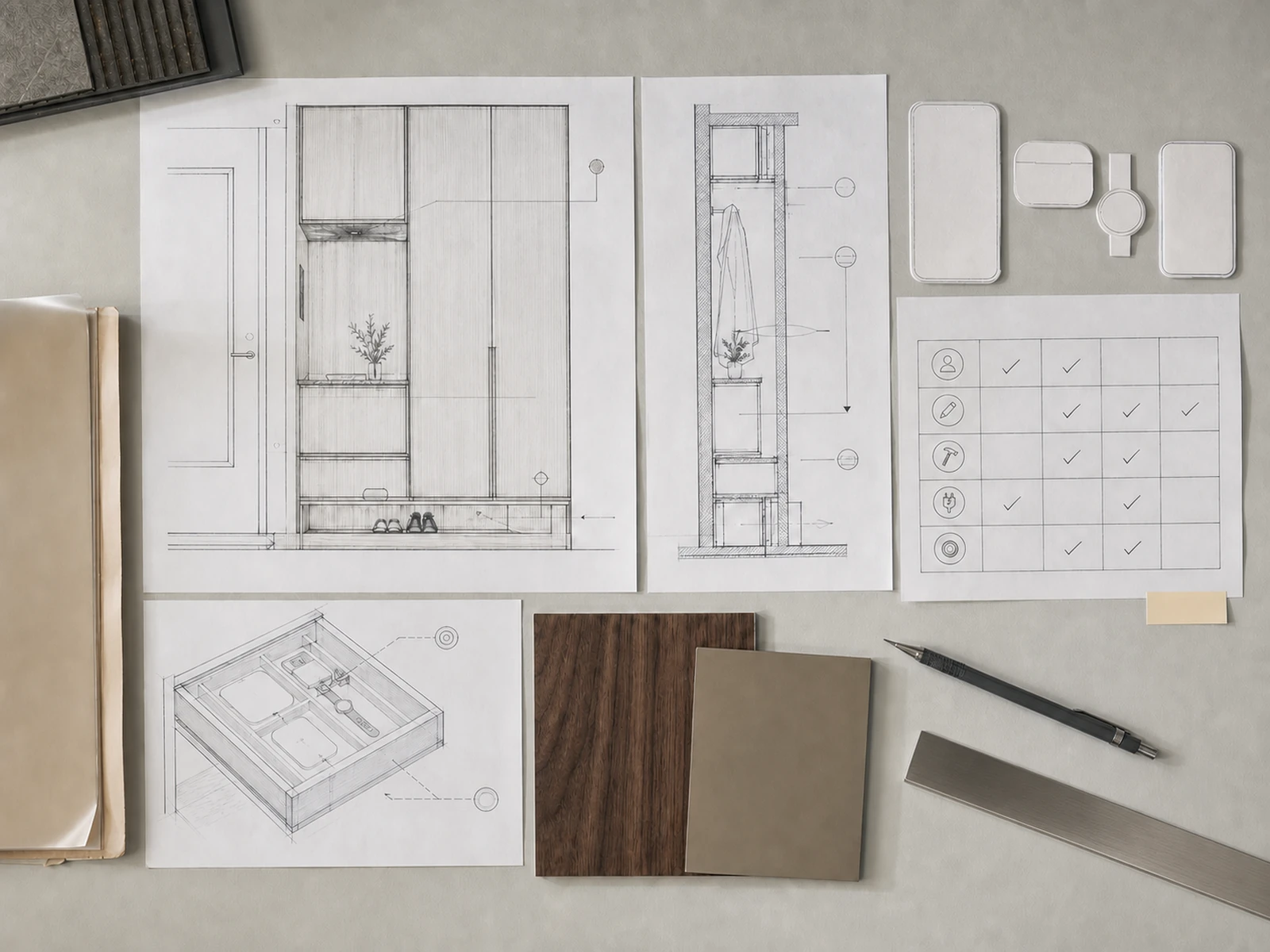

Start with a Device and Responsibility Schedule

Before drawing dividers or choosing a width, list what will actually be placed there. Record device dimensions, connector direction, charging method, and use frequency. A charging base may need more area than the device itself, while a side-entry connector can change the clear width. This schedule prevents the drawer from being designed around imaginary, interchangeable rectangles.

List the Devices That Will Actually Arrive Home

Separate daily devices from occasional accessories and spare cables. The drawer should serve the arrival routine, not store every charger in the house. This makes capacity easier to define and avoids fixed compartments that may not suit future devices.

Separate Cabinetry Scope from Electrical Scope

The schedule should also identify who confirms each interface. The cabinet team can dimension the drawer, prepare an agreed opening, and show access. Component suitability, the supply point, and electrical installation may require the project’s supplier, designer, electrician, or another qualified local professional.

Decision to Record	What the Drawing or Schedule Should Show	Confirmation Needed From
Daily devices	Device list, approximate sizes, charging method	Homeowner or project team
Power interface	Approved component or interface reference	Project electrical team or supplier
Cabinet opening	Position and clear size coordinated with the approved component	Cabinet designer and project team
Site connection	Supply condition and installation responsibility	Qualified local electrical professional
Future access	How the organizer, plug, module, or panel can be reached	Cabinet designer and project team

Manufacturer note: Cabinet drawings should record the approved interface and access conditions. They do not replace component instructions, local requirements, or qualified electrical work.

Mark Power Access Before You Finalize the Drawer

Power access is a design input. The approved supply point and charging component affect drawer location, nearby cabinet voids, and the route by which cables reach devices.

Show the Supply Point and Charging Module Location

Distinguish the building-side supply condition from the cabinet opening or mounting area. If an approved module is included, show where it sits and how it can be reached. There is no universal outlet position: wall construction, local requirements, component instructions, hardware, and layout all matter. Ask whether the approved component can be installed, used, inspected, and reached without conflicting with the drawer.

Draw the Cable Route Through a Moving Assembly

A drawer moves; the building supply does not. Show where cables enter, what moves, and what remains fixed. Check the route open and closed so it does not cross hardware, a sharp edge, or a pinch point. After the electrical approach is approved, mark the intended opening and access route on the section or detail instead of relying on “cable hole by installer.”

Dimension the Usable Drawer Interior

The width of the drawer front tells very little about the space available for charging. Side panels, runners, the drawer box, cable entry, power components, and organizers all reduce the clear interior. The drawing should dimension the usable width, depth, and height rather than asking the user to infer them from the cabinet elevation.

Check Devices, Connectors, and Hand Access

Place scaled outlines inside the clear area, including charging bases and connectors. Check whether a hand can lift each device without pulling another cable. If a power bank, watch charger, or tablet does not fit without unrealistic overlap, reduce the device list or revise the drawer.

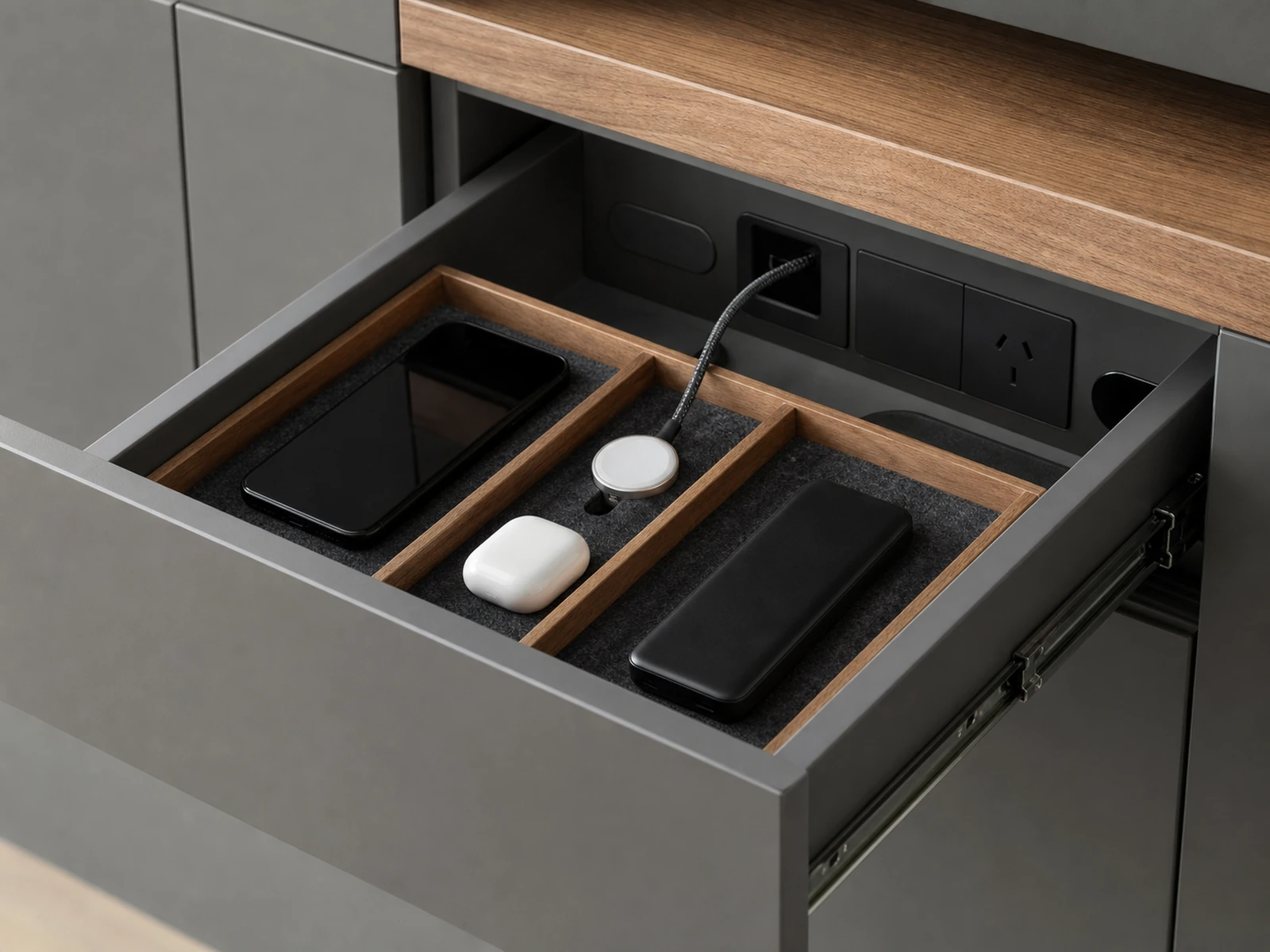

Prefer Removable Organization

Removable trays make the cable area easier to reach and tolerate changing devices. Fixed tiny compartments may become obsolete. Show how the organizer lifts out and what remains accessible below or behind it.

Draw Charging and Key Drop as Separate Zones

Keys, access cards, and coins follow a different routine from connected devices. A separate key drop keeps them off screens, connectors, and charging bases, and lets someone retrieve keys without disturbing devices. Show both zones on the elevation and internal layout; their exact relationship depends on the entry sequence, cabinet height, handedness, and storage plan.

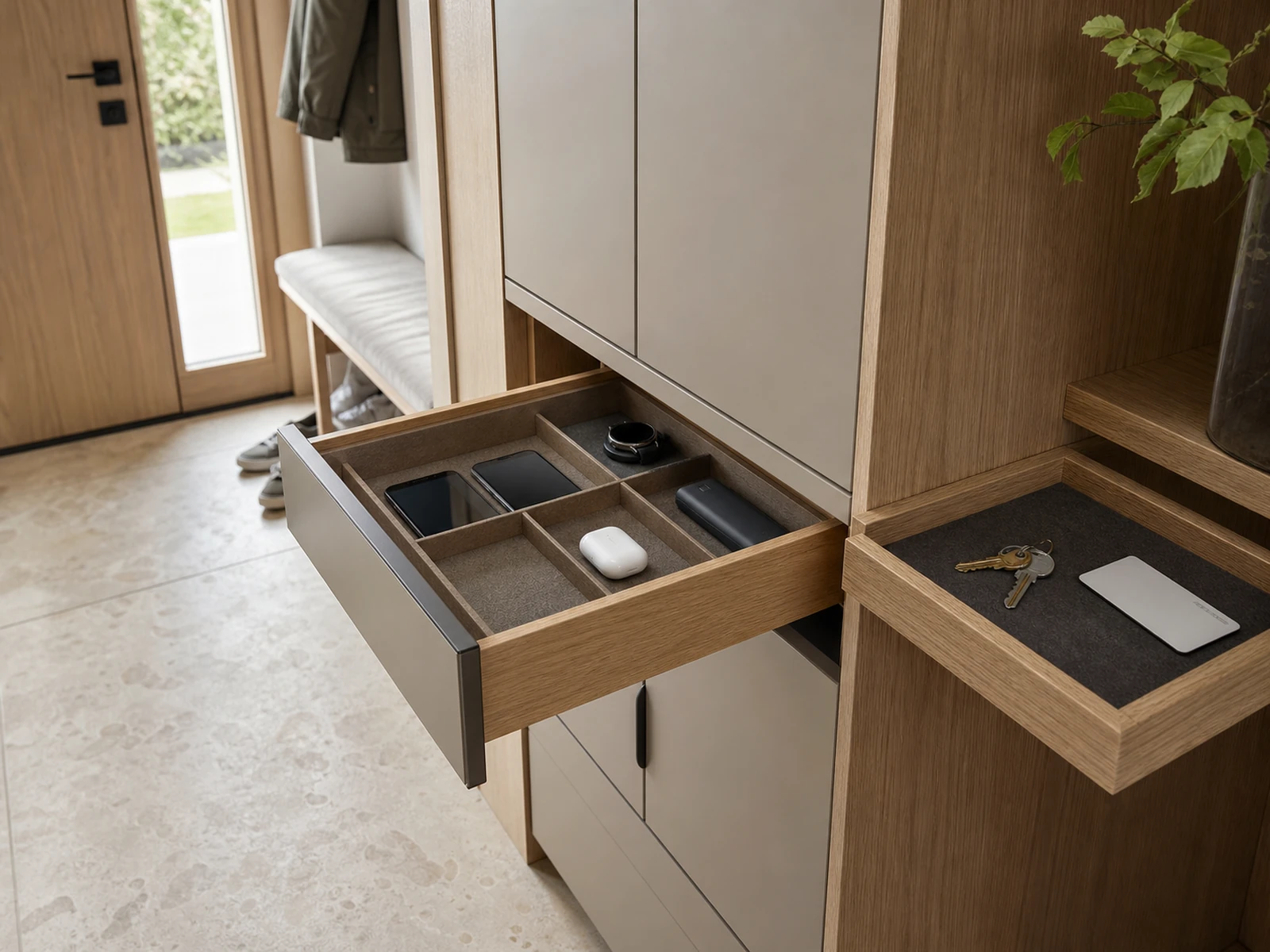

The matching entryway cabinet with charging drawer and key drop zone shows how those two functions can remain separate while cable access stays serviceable.

Record Ventilation, Materials, and Device Requirements

A closed drawer changes the environment around devices and chargers. Record the approved ventilation or use requirement for the selected products and cabinet construction rather than copying a generic gap from another project.

Follow Product Instructions, Not a Universal Formula

Confirm whether the devices, chargers, and power components are intended for the proposed use, then record any cabinet-related clearances, openings, or access conditions. If information is missing, leave the detail open for coordination rather than calling it universally suitable or safe. The USA, Singapore, and Australia do not share one electrical detail; final decisions belong with approved component information and qualified local project professionals.

Confirm the Cabinet Details That Affect Daily Use

Organizer material, drawer lining, cable-edge treatment, and nearby finishes should support cleaning and device handling. Avoid pieces that block the cable area. If approved ventilation openings are included, show them and keep them clear of the organizer and stored objects.

Make the Service Path Visible

Service access matters when a plug must be disconnected, an organizer removed, or a component inspected. Use a section or enlarged detail to show the sequence: can the drawer and tray be removed correctly, are panel fixings reachable, and can the cable entry be inspected? Record the access method in the installation notes so the site team preserves it.

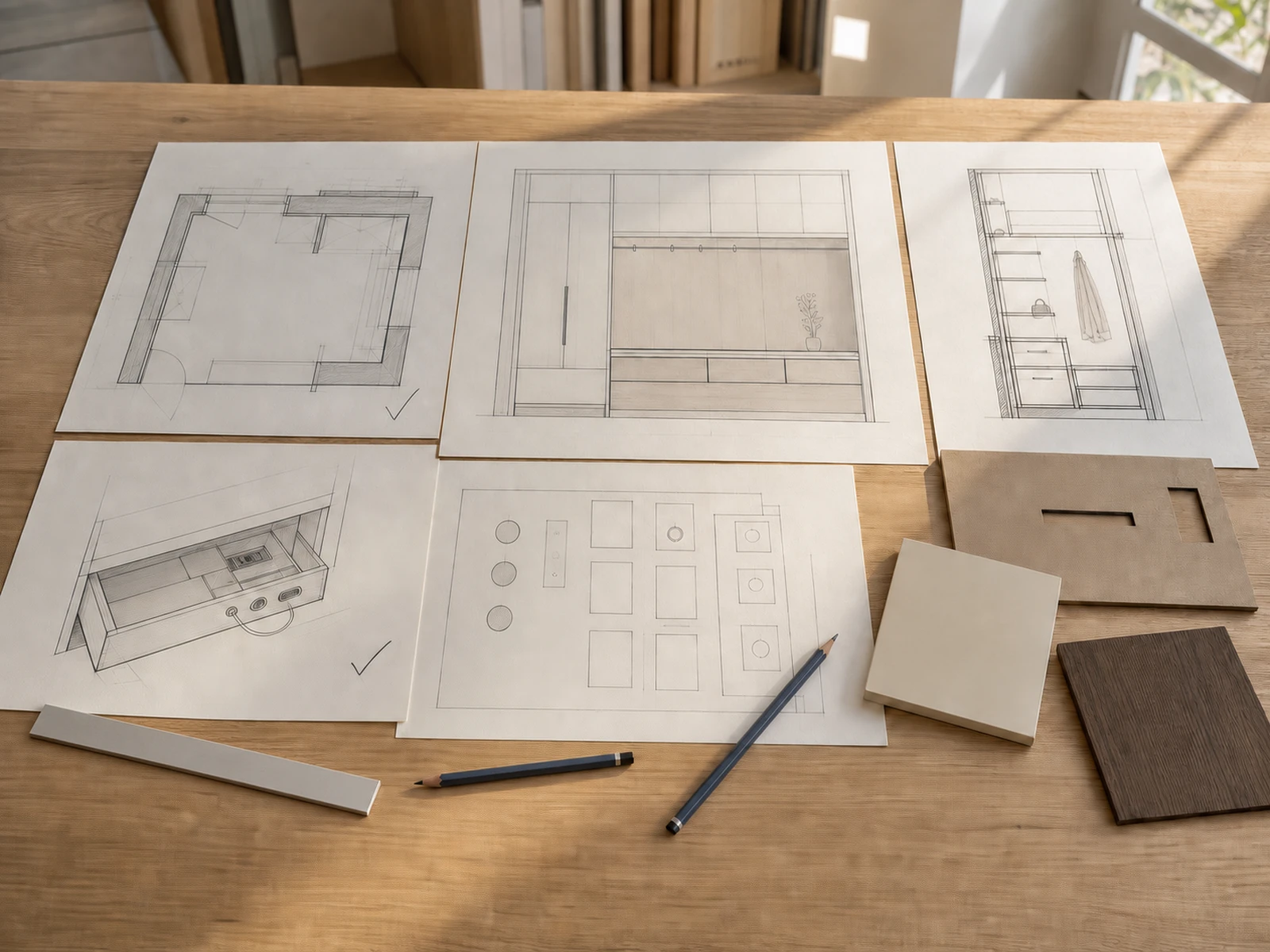

Cross-Check Every Drawing View

An entryway cabinet with charging drawer is not coordinated if the idea appears only on the front elevation. Review the plan, elevation, section, enlarged detail, and schedules together.

Plan and Elevation

The plan shows the relationship to walls, circulation, doors, and nearby functions. The elevation locates the charging drawer and key drop and exposes access conflicts a single front view can hide.

Section, Detail, and Schedule

The section shows internal depth, construction, voids, and moving versus fixed parts. The enlarged detail records openings, removable elements, cable routes, and access. Schedules identify what the geometry serves and who confirms each interface.

Drawing View or Record	Approval Question
Plan	Does the cabinet location coordinate with the room and approved supply condition?
Elevation	Are the charging and key-drop zones at usable positions and free from door conflicts?
Section	Are the internal clear dimensions, moving parts, and fixed voids understandable?
Enlarged detail	Are the opening, cable route, removable organizer, and access method explicit?
Device schedule	Does the layout match the actual devices and connectors?
Responsibility schedule	Is it clear who confirms, supplies, installs, and signs off each interface?

Pre-Production Sign-Off Checklist

Before approving the cabinet for production, confirm that:

• the daily device list and charging methods are recorded;
• the selected power component or interface has been approved by the responsible project party;
• the supply condition, cabinet opening, and installation responsibility are coordinated;
• usable drawer dimensions are shown, not only the front-panel dimensions;
• device and connector outlines fit without relying on unrealistic cable overlap;
• the organizer can be removed and does not block access;
• charging devices and the key drop have distinct zones;
• the cable route has been checked with the drawer open and closed;
• applicable product instructions and project requirements are referenced;
• the plug, module, cable entry, and relevant fixings can be reached for inspection or service;
• plan, elevation, section, details, and schedules agree.

If one item is unresolved, mark it as an open coordination point with an owner. A clear unresolved note is safer for the project than an attractive rendering that implies a decision has already been made.

Frequently Asked Questions

Does an entryway charging drawer need ventilation?

It depends on the devices, chargers, components, and cabinet construction. Follow the selected product instructions and coordinate required openings or clearances with the cabinet drawings and qualified local professionals. One detail does not suit every drawer.

Where should the outlet be placed for a charging drawer?

There is no universal position. Coordinate it with the approved electrical approach, construction, drawer movement, cable route, and access. Confirm it before the cabinet opening and internal layout are released.

Can a power or USB module be installed inside the drawer?

Only if the selected component suits the proposed use and installation follows its instructions and local requirements. Show the agreed interface and access; do not assume any retail power strip or module is appropriate.

How large should the charging drawer be?

Size it from the device and connector schedule, then account for the drawer box, hardware, cable entry, approved power interface, organizer, and hand access. Do not substitute drawer-front width for usable dimensions.

Turn a Feature Label into a Buildable Detail

A well-resolved charging drawer begins with documents, not accessories. The device list defines the contents, the approved electrical approach defines the interface, and the cabinet drawings turn both into dimensions, openings, zones, clearances, and access.

If you are preparing an entryway cabinet with charging drawer for quotation or drawing review, send the cabinet team the intended device list, available product information, and the approved project-side power conditions. That gives the design conversation a specific starting point while leaving component approval and electrical work with the responsible local professionals.
